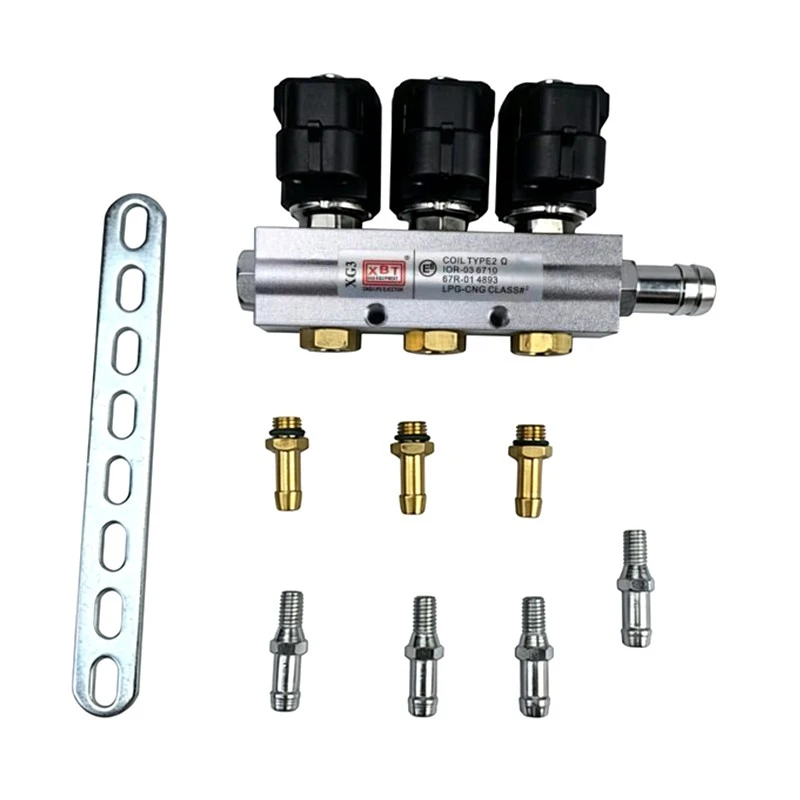

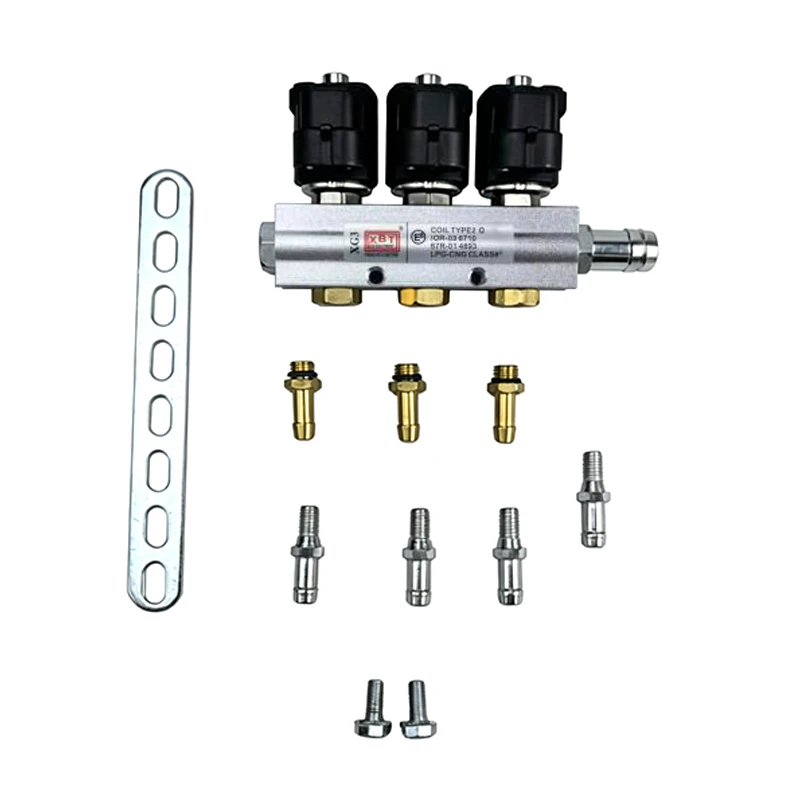

3 Lub tog raj kheej Hnav-Resistant Gas Injector Rail rau CNG LPG Cov Hluav Taws Xob Hluav Taws Xob
Qhov no yog 3-lub tog raj kheej injector rail rau CNG thiab LPG kev hloov pauv ntawm cov tsheb me me.
Peb pom ntau tus neeg tsim khoom siv 4-lub tog raj kheej ntsia nrog ib lub qhov hluav taws xob thaiv. Nws ua hauj lwm tom qab ib tug zam, tab sis 3-lub tog raj kheej cav muaj sib txawv firing intervals thiab vibration qauv. Thaiv tawm ntawm qhov chaw nres nkoj cuam tawm ntawm qhov sib npaug sab hauv - tsis ua haujlwm tau txais kev ntxhib los mos, throttle xav tias tub nkeeg, thiab lub cav tsis ua haujlwm.
Peb tsim qhov no los ntawm kos rau 3-lub tog raj kheej daim ntawv thov. Cov kev khiav dej num yog qhov loj me me los ntawm qhov pib, cov tub ntxhais valve yog tuned rau qhov kev khiav hauj lwm qis dua cov cav no khiav ntawm, thiab tag nrho lub cev me me kom haum rau lub cav kaw ntom nti. Nws yog ib qho kev hloov huv - tsis muaj shortcuts.
Khoom Taw Qhia
Feem ntau 3- lub tog raj kheej hloov pauv peb pom yog nyob rau hauv lub nroog me me - xav tias hatchbacks, mini-vans, compact utilities. Cov cav no tsis ua haujlwm qis, rov qeeb dua, thiab siv sijhawm ntau dua hauv kev nres-thiab-mus tsheb ntau dua li cov cav loj dua. Cov qauv xav tau roj sib txawv.
Kev hloov kho 4- lub tog raj kheej rail tsis suav rau qhov ntawd. Lub qhov hluav taws xob thaiv qhov hluav taws xob ua rau lub siab ripple, thiab peb qhov hluav taws xob ntxiv tsis tau txais kev sib npaug. Sij hawm dhau mus, qhov tsis txaus ntseeg tshwm sim ua qhov tsis sib xws, lub tog raj kheej - mus rau - lub tog raj kheej hloov pauv, thiab lub zog qis qis qis.
Txoj kev tsheb ciav hlau no muaj peb txoj kev sib cais, machined kom xa cov roj sib npaug rau txhua lub tog raj kheej. Cov khoom siv tseem ceeb ntawm lub valve raug xaiv rau hom kev caij tsheb kauj vab no pom - nquag, qis- nrawm, qis dua- lub luag haujlwm mus piv rau siab - daim ntawv thov kev ua haujlwm. Nws tsis yog ib qho universal nyem rau hauv daim ntawv thov 3-lub tog raj kheej - nws tau ua rau nws.
Khoom Parameter
|
Yam khoom |
Specification |
|
Yam khoom |
Export hnav- tiv taus siab - ceev roj injector rail |
|
Siv tau lub tog raj kheej Number |
3 cylinder |
|
Ua hauj lwm zaus |
0-160HZ |
|
Ua Haujlwm Siab |
0.05-0.2Mpa, siab kawg siab tsis kam: 0.3Mpa |
|
Ua haujlwm Voltage |
DC 12V ± 15% Tawm tswv yim |
|
Coil Resistance |
2.0Ohm ± 15% |
|
Inlet Diameter |
Φ10 hli |
|
Qhov hluav taws xob txoj kab uas hla |
Φ5 hli |
|
Ua haujlwm kub (LPG) |
-20℃~ +120 degree |
|
Ua haujlwm kub (CNG) |
-40℃~ +120 degree |
|
Qhib Lub Sijhawm Teb |
2.5ms ± 5% |
|
Kaw teb lub sij hawm |
1.8ms ± 5% |
|
Customization Service |
Txhawb tus kheej kev cai ntau lawm |
Khoom feature thiab daim ntawv thov
Core Product Features
Peb lub hom phiaj txaus siab - tsis muaj qhov chaw nres nkoj, tsis muaj qhov tsis sib xws
Valve core sib phim rau qis -rpm, siab - voj voog hauv nroog tsav tsheb qauv
Compact hneev taw - haum rau lub cav me me uas tsis muaj kev hloov kho
Standard 2.0Ω kauj - sib xws nrog 12V roj ECUs uas twb muaj lawm
Ntau qhov siab sib xws li ib txwm me me - lub cav LPG / CNG teeb tsa
Qhov ntsuas kub ntsuas npog ob hom roj
Mounting layout ua raws li kev coj ua - tsis muaj surprise rau installers
Main Application Scenarios
Txoj kev tsheb ciav hlau no yog nyob rau ntawm 3- lub tog raj kheej me me-tsav tsheb roj av - tsheb hauv nroog, tsheb loj hatchbacks, tsheb me me - uas khiav CNG lossis LPG. Nws yog rau kev hloov pauv tshiab thiab tseem hloov pauv cov hlua khi ntawm cov tsheb uas twb tau ua haujlwm lawm.
Yog hais tias koj tam sim no siv lub plugged 4-lub tog raj kheej rail, qhov no tshem tawm cov hauv paus ntsiab lus ntawm qhov tsis sib xws. Nws tsis yog kev txhim kho kev ua tau zoo - nws yog kev kho.
Khoom Paub meej
Lub cev yog tuag-cam khwb cia txhuas, qhov loj me kom haum rau cov kev tshem tawm nruj dua nyob rau hauv me me - cav cav bays. Cov kab lus sab hauv yog machined sib cais rau txhua lub tog raj kheej - tsis muaj kev sib koom ua ke uas ua rau hla - tham ntawm qhov hluav taws xob.
Cov tub ntxhais valve tau khiav los ntawm lub voj voog kev sim uas simulates nres - thiab - mus hauv nroog tsav tsheb: nquag hloov ntawm qis zaus, qis dua lub voj voog, lub sijhawm ua haujlwm ntev dua. Nws tuav tau zoo dua nyob rau hauv cov xwm txheej no dua li tus qauv tseem ceeb tsim los rau nruab nrab - cov ntawv thov.
Coil yog 2.0Ω, 12V ntsuas. Cov ntsaws ruaj ruaj tau sib xws nrog CNG thiab LPG qhov kub thiab txias. Inlet thiab qhov hluav taws xob qhov ntsuas qhov sib npaug ntawm cov kav dej ntawm cov khoom me me feem ntau - tsheb hloov tsheb.
Tswv yim tswv yim:Nruab ib lub tshuab lim dej ntws thiab hloov tsis tu ncua. Qhov ntawd yog ib kauj ruam ntawm kev saib xyuas zoo tshaj plaws - nws ua kom cov tsheb ciav hlau huv si thiab txo txoj hauv kev ntawm solenoid sticking.
Product Qualification & Strength Verification
Txhua batch mus los ntawm cov qauv ua ntej- cov khoom xa tuaj:
Kev ntsuas lub voj voog ntawm kev ua haujlwm zaus
Kub caij tsheb kauj vab los ntawm -40 rau +120
Kev tuav tuav thiab xau kom pom
Teb lub sijhawm pov thawj
Peb tsim cov khoom no hauv peb lub hoobkas. Lub 3-lub tog raj kheej rail tau tsim los ntawm kev tawm tswv yim ncaj qha rau cov neeg siv khoom - tshwj xeeb, cov teeb meem tsim los ntawm kev siv 4-lub tog raj kheej hloov. Peb cov ntaub ntawv QC zoo sib xws hauv cov khoom siv.
Cov qauv thiab kev txiav txim ntau yog ua los ntawm tib txoj kab ntau lawm. Kev hloov kho kev cai - mounting qhov chaw, connector hom - yog muaj rau cov lag luam wholesale cov neeg thov.
Shipping, Delivery & Tom qab -Kev Muag Khoom
Muaj peev xwm xa khoom ruaj khov
Peb khaws cov khoom lag luam thiab khiav cov voj voog ntau lawm. Cov qauv txiav txim, nruab nrab khiav, ntim puv - lub sij hawm ua cov hmoov lead yog ruaj khov thiab kwv yees.
Diversified Shipping Methods
Qhia, huab cua, lossis hiav txwv. Peb yuav pom zoo cov kev xaiv uas sib npaug tus nqi thiab lub sijhawm thauj mus los rau koj qhov chaw nyob.
Kev tshaj lij tom qab-Kev them nyiaj yug muag
Peb muab kev pom zoo kom haum ua ntej kev txiav txim, kev taw qhia kev teeb tsa, thiab kev pab daws teeb meem tom qab xa khoom. Peb pab neeg ua haujlwm nrog tib lub installers koj ua, yog li peb tuaj yeem muab tswv yim tswv yim thaum qee yam tsis ua raws li qhov xav tau.
FAQ
Q1: Qhov kev tsheb ciav hlau no puas tuaj yeem tswj tau qhov kev vibration los ntawm lub cav 3-lub tog raj kheej?
A: 3-lub tog raj kheej cav vibrate txawv dua li 4-lub tog raj kheej - lawv muaj cov yam ntxwv co ntawm qee RPMs. Cov ntsiab lus mounting ntawm lub tsheb ciav hlau no yog tsim los daws qhov ntawd. Lub cev qauv yog ntxiv dag zog los tiv thaiv kev qaug zog tawg uas tuaj yeem tshwm sim nrog cov hlua sib dua ntawm cov cav no.
Q2: Koj puas muaj cov ntaub ntawv xeem muaj rau batch validation?
A: Yog. Peb tuaj yeem muab cov ntsiab lus batch - kev nyeem ntawv tsis kam, lub sijhawm teb, cov txiaj ntsig kev xeem xau. Cov ntaub ntawv ntawm tus kheej yog muaj rau kev txiav txim loj dua ntawm kev thov.
Q3: Lub sij hawm qhib teb puas txawv ntawm qhov kub thiab txias?
A: Peb kuaj thoob plaws qhov ntsuas kub tag nrho. Tus spec yog ± 5%, thiab peb pom qhov sib txawv hauv qhov ntawd. Thaum huab cua txias (-40 degree), cov lus teb yuav yog qhov qeeb qeeb ntawm qhov spec, tab sis tseem nyob rau hauv siab ntev.
Q4: Cov ntaub ntawv shipping twg koj muab?
A: Cov ntawv xa khoom lag luam, cov ntawv ntim khoom, thiab daim ntawv xa khoom. Yog tias koj lub tebchaws xav tau daim ntawv pov thawj ntxiv (xws li keeb kwm lossis cov ntawv xeem), peb tuaj yeem muab cov ntawv thov ua ntej.
Q5: Koj xav tau dab tsi los ntawm peb kom paub meej tias haum?
A: Hom cav, lub tog raj kheej suav, hom roj (CNG lossis LPG), thiab daim duab ntawm txoj kev tsheb ciav hlau tam sim no nrog kev ntsuas yog tias muaj. Peb mam li muab piv rau peb cov specs thiab qhia rau koj paub.
